Hand and Wrist Implants
Clinically Proven Hand & Wrist Fixation Systems: Engineered to meet international surgical standards, our extremity implants deliver uncompromised clinical outcomes while reducing hospital procurement costs by 50% to 60%. Certified under ISO 13485:2016 quality management systems with FDA clearance, OIC provides hospital networks, ASCs, and global medical distributors with robust, anatomical solutions for distal radius, metacarpal, and complex carpometacarpal trauma.

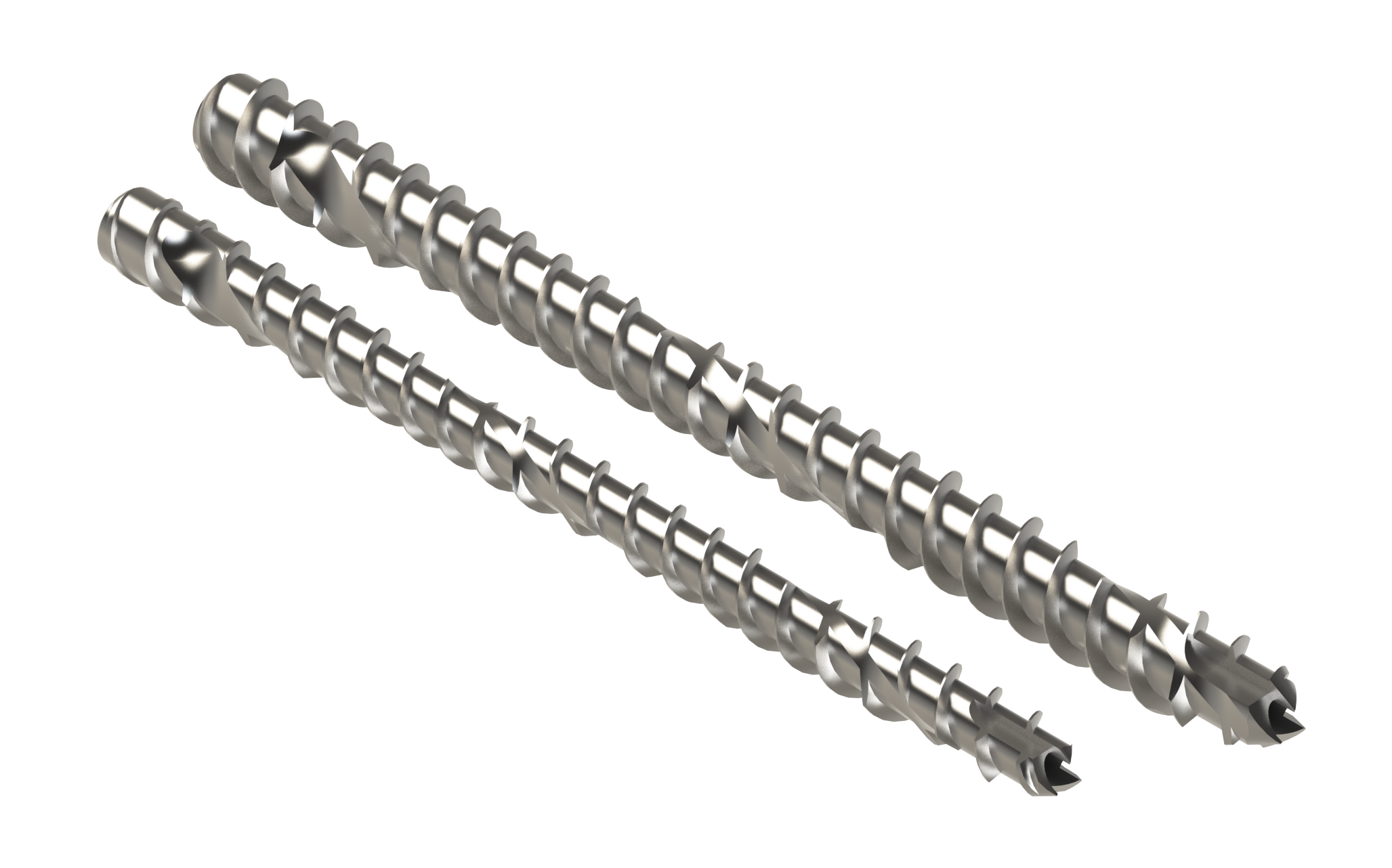

Threaded Metacarpal Nail System
Minimally Invasive Metacarpal Fracture Fixation
The OIC Threaded Metacarpal Nail offers a state-of-the-art, minimally invasive technique for acute metacarpal shaft and neck fracture repair. Designed to reduce operative time and trauma to surrounding soft tissue, this cannulated intramedullary system incorporates a tapered head diameter and a variable thread pitch that reduces insertion torque while ensuring rigid rotational stability.
Key Engineering Features:
- Medical-Grade Material: Manufactured from implant-grade 316LVM stainless steel for optimal tensile strength and durability.
- Dual Lead Threads: Accelerates insertion speed, lowering intraoperative fluoroscopy exposure and surgical time.
- Anatomical Contour: Tapered proximal waist mimics the natural isthmus geometry of the intramedullary canal.
- Cannulated Core: Allows precise, guided percutaneous placement over a standard 1.1mm guide wire.
| Implant Specification | Technical Range |
|---|---|
| Diameter Sizes | Ø 3.6mm & Ø 4.5mm trailing diameters |
| Length Variations | 30mm to 70mm (5mm increments) |
| Surgical Approach | Retrograde percutaneous / Minimally Invasive |

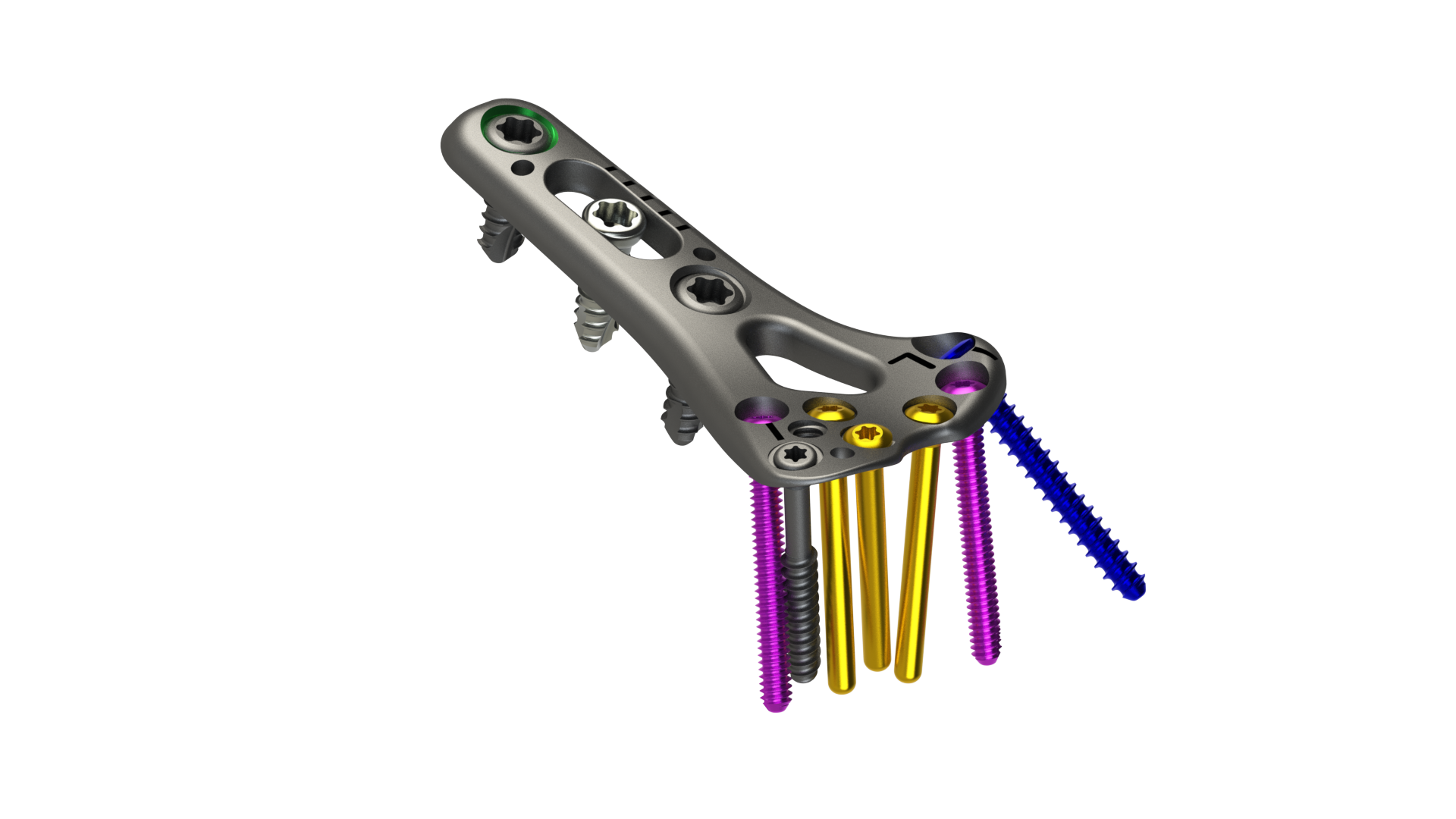

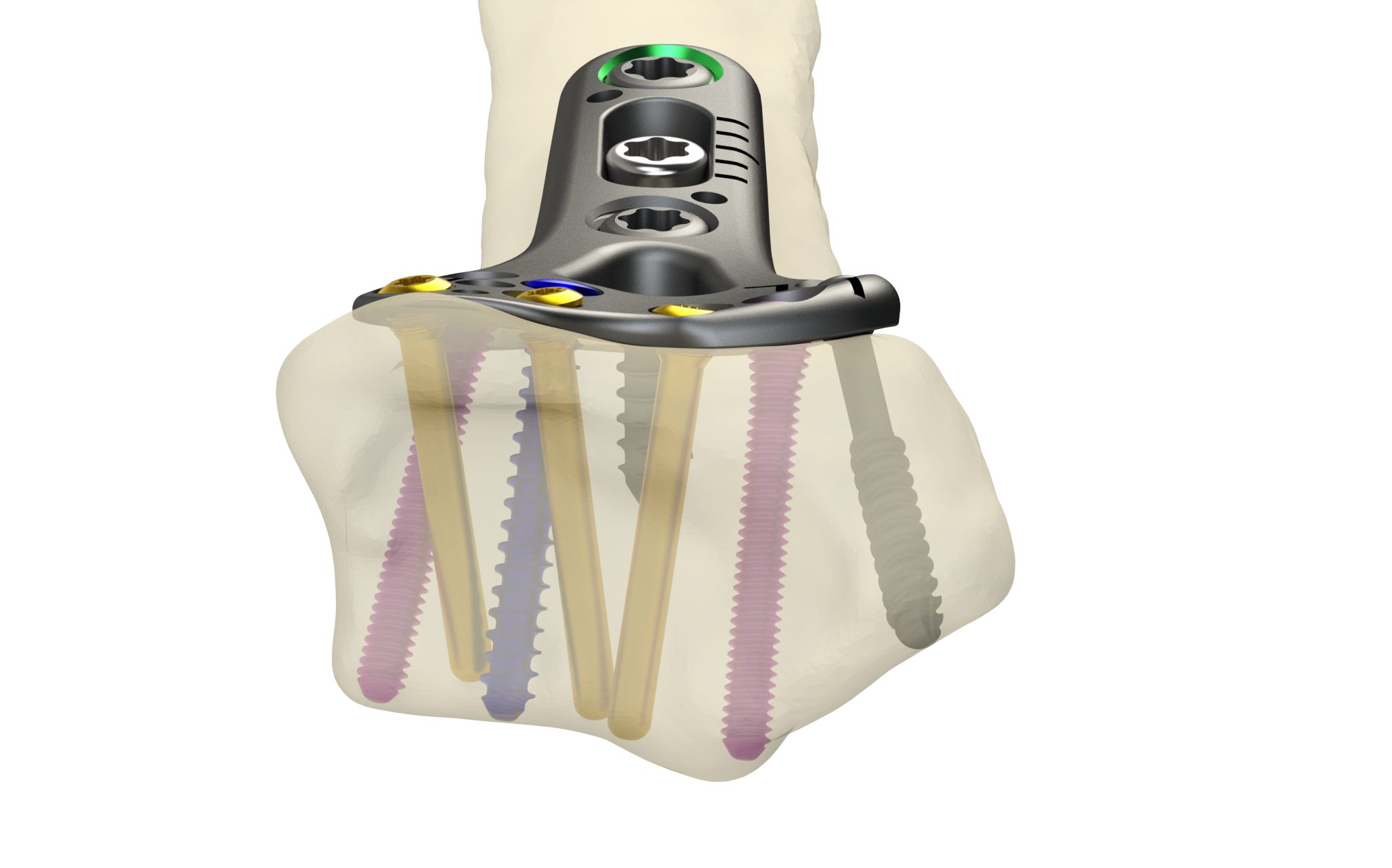

DRPx™ Distal Radius Plating System
Anatomical Volar Plating for Complex Wrist Trauma
The DRPx Distal Radius Plating System provides comprehensive anatomical fixation for intra-articular and extra-articular distal radius fractures. Constructed from Type II Anodized Titanium Alloy, DRPx plates are contour-matched to the watershed line to minimize flexor tendon irritation while providing multi-planar subchondral support.
Key Engineering Features:
- Low-Profile Design: Ultra-thin distal lip reduces soft tissue contact and tendon friction post-fixation.
- Variable Angle Locking: Allows up to ±15° polyaxial screw trajectory for targeted subchondral bone fixation.
- Distal Fracture Window: Integrated bone graft window facilitates direct fracture visualization and void filling.
- Color-Coded Anodization: Swift identification of left (blue) and right (green) surgical plates in fast-paced OR settings.
| Implant Specification | Technical Range |
|---|---|
| Shaft Screw Compatibility | 3.5mm Locking and Non-Locking Cortical Screws |
| Distal Screw Options | 2.0mm Smooth Pegs, 2.3mm Threaded Locking, 2.6mm Compression |
| Plate Configurations | Standard, Wide, Narrow, and Extended Shaft Lengths |
Dorsal Spanning Plate (DSP) System
Distraction Plating for Comminuted Wrist Fractures
The OIC Dorsal Spanning Plate (DSP) completes the extremity trauma portfolio by addressing highly comminuted articular distal radius fractures, radiocarpal dislocations, and polytrauma wrist injuries. Designed to bridge the radiocarpal joint from the radial shaft to the index or long metacarpal, the DSP system utilizes ligamentotaxis to restore length and alignment.
Key Engineering Features:
- Pre-Contoured Volar Bend: Incorporates a anatomically pre-shaped 6° dorsal-to-volar curvature to match third metacarpal alignment.
- Rigid Distraction Stability: Resists deformation under heavy load, ensuring fracture length preservation during early mobilization.
- Ergonomic Insertion Handle: Simplifies subcutaneous passage beneath extensor compartments.
Global B2B Supply & OEM Procurement
Orthopaedic Implant Company supplies medical distributors, tender boards, and hospital procurement departments globally. All our hand and wrist implants undergo rigorous mechanical testing, batch traceability, and quality verification in accordance with ISO 13485 standards. Contact our international sales team for OEM catalog requests, pricing sheets, and distributor opportunities.
